All posts in Rotating braiding machine for light and resistant round chains

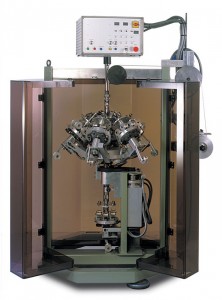

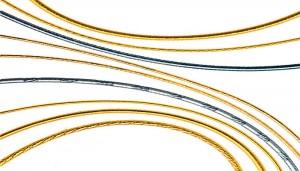

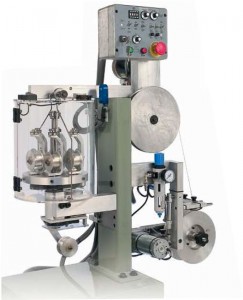

Fast and highly productive Rotary Braiding machine specially designed for extremely light and strong round chains. Able to simultaneously braid upto 16 flat strips or round wire (strands) into a predetermined size tube or cage. Strips can be of different colors or finishings. Any amount of strands may be used (up to a max. of 16) to create  different braid textures. Braid inclination angle and drawing speed are manually adjustable. Indifferently braids strands into cored or empty tubes, the machine is complete with an external spool for applying core wire, as well as an automatic winder for take up of the finished braid. Optional alternate pitch attachment available which can vary the pitch of the braid uniformly within the same piece of chain.

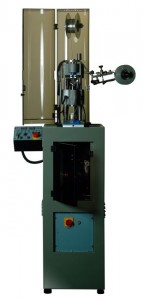

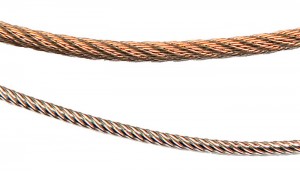

Extremely fast and compact unit able to produce a multi-wire spiral cable composed of 7 single wires simultaneously in one pass through the machine. The unit houses 7 different spools of wire grouped with a core spool, surrounded by 6 satellite spools. The machine wraps the 6 satellite cables around the core cable while simultaneously producing the core and satellite cables. Machine production rates depend on single wire diameters. With the substitution of the spool plate it is possible to produce cable of up to 12 wires.
