All posts in Machine to insert beads in chains for jewelry

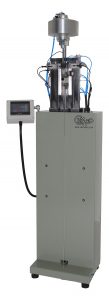

Operator managed, stand alone bead counting and stringing system.
Automatically counts and threads beads onto a waiting rod.
Beads are loaded into the top hopper equipped with rotational agitator which sees to feeding them one by one into the loading station where they are turned over until threaded onto the loading pin. At this point the beads are counted into pre-programmed lots and discharged onto the threading rod.
The various settings for each work cycle is set via a touchscreen controlled PLC. All moving parts are pneumatic Once having reached the set number of beads, the machine stops the work cycle, and allows the easy removal of the threading rod with all of the beads

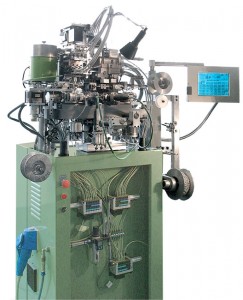

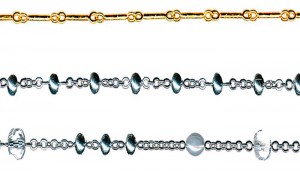

Fully automatic machine for the application of beads/balls directly into an anchor (gucci) chain. The unit takes anchor chain from a spool and automatically selects a bead from one of the 3 vibrating hoppers and inserts it onto the link bar. The beads (which have 2 holes) are left free to rotate within the link. The chain may also then be curbed directly after inserting the bead. The 3 vibrating hoppers can manage 3 different colour/shape beads which are sequenced into the chain based on the program inserted in the machine by the operator. Even beads without holes can be mounted by caging them inside the link after it has been curbed. MIP1 version has only 1 hopper.
