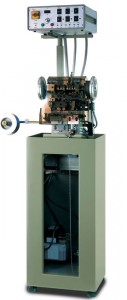

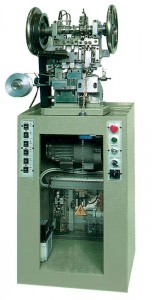

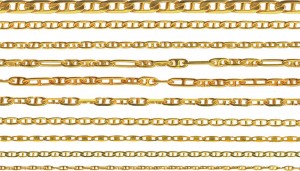

A simple machine produced in 3 different versions, MIB1, MIB2 and MIB3. The machine is used for inserting a bar or strip into the links of a cable or curb chain for producing Gucci or valentino chains. The basic differences between the machines is that MIB1 carries out this operation on smaller fixed pitch chains, MIB2 works also on figaro (alternate pitch) chains and MIB3 processes the bigger fixed and alternate pitch chains.
Also optionally available is a laser soldering kit which solders the bar directly in the link.
Technical features MIB1 & MIB2 MIB3 Max. production speed 200 bars/min 120 bars/min Max. feeding pitch 19 mm (or 21 mm) up to 37 mm Wire Ø from 0.30 to 1.20 mm 1.20 to 4.00 mm Technical features Voltage (single phase) 230 V 50/60 Hz Power (MIB1 & 2) 0.5 kW (MIB3) 1 kW Compressed air 20 l/min (filtered) at 6 bar MIB1 & MIB2 MIB3 Dimensions 55 x 50 x 132 (h)cm – 120 kg 70 x 60 x 165(h) cm –250 kg Packing 176 x 61 x 64 (h) – 185 kg 73 x 62 x 180 (h) cm – 340 kg
